072019 | BKL Electronic

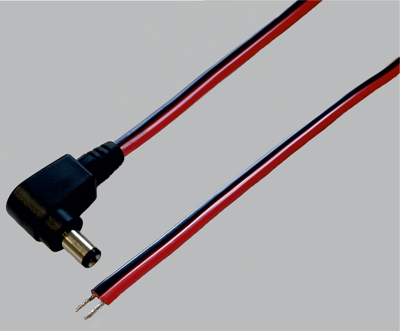

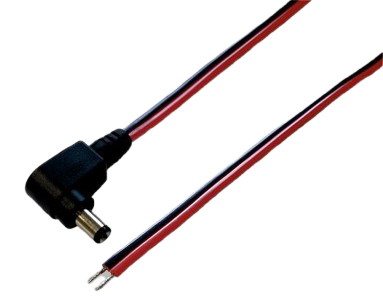

DC connection cable, 2 m, red/black, plug 2.5 x 5.5 mm, angled to open end, 072019
Order No.: 82F386
EAN: 4099891099237
MPN:
072019
Unit Price (€ / pc.)
4.4268 € *
Available: 121 pcs.
Leadtime: 4 Weeks **
Total Price:
4.43 € *
Price list
Quantity
Price per unit*
1 pcs.
4.4268 €
10 pcs.
3.8794 €
100 pcs.
3.4153 €
250 pcs.
3.2844 €
1000 pcs.
3.0821 €
*incl. VAT plus shipping costs
**Subject to prior sale
DC power cables, type 072.
Angled DC plug to stripped and tinned cable ends; Stranded wire color: red-black. Length: 2.0 m.
Twin stranded wire, 2 x 0.4 mm².
Technical attributes (type, plug inner diameter x outer diameter): 072019, 2.5 x 5.5 mm
Technical specifications
| Connection (1) | plug 2.5 x 5.5 mm, angled | |
| Connection (2) | open end | |
| Colour | red/black | |
| Cable length | 2 m | |
| Cable cross-section | 2 x 0.4 mm² | |
| Rated voltage | 12 V | |
| Rated current | 3 A |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
