072090 | BKL Electronic
DC connection cable, 2 m, black, plug 2.1 x 5.5 mm, straight to open end, 072090
Order No.: 82F4602
EAN: 4011376104618
MPN:
072090
Unit Price (€ / pc.)
4.8790 € *
Available: 125 pcs.
Leadtime: 2 Weeks **
Total Price:
4.88 € *
Price list
Quantity
Price per unit*
1 pcs.
4.8790 €
10 pcs.
4.3078 €
100 pcs.
3.7604 €
250 pcs.
3.6176 €
1000 pcs.
3.3915 €
*incl. VAT plus shipping costs
**Subject to prior sale
DC power cables, type 072.

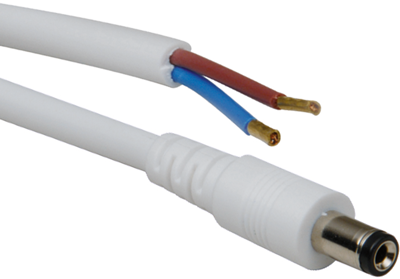

Straight DC plug to stripped wire ends with wire end ferrules; Stranded wire color: blue-brown. Color outer insulation and plug: black or white. Cable length: 2.0 m. Cross-section: 0.5 mm².
Technical attributes (type, plug inner diameter x outer diameter, color): 072090, 2.1 x 5.5 mm, white
Technical specifications
| Anschluss (1) | Stecker 2,1 x 5,5 mm, gerade | |
| Anschluss (2) | offenes Ende | |
| Farbe | schwarz | |
| Kabellänge | 2 m | |
| Leiterquerschnitt | 2 x 0,5 mm² | |
| Nennspannung | 12 V | |
| Nennstrom | 7 A |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
