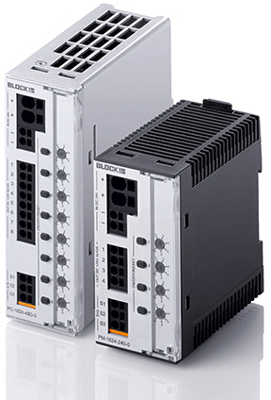

Circuit breaker, PC-0724-800-0, Block
The electronic circuit breaker distributes the load current to multiple junctions and reliably monitors them for overload and short circuit. The electronics tolerates short-term current spikes, for example, resulting from a high starting current; it de-energizes junctions with long overloads. This is ensured on the high-resistance lines themselves and in the case of “creeping” short circuits. The rated current can be individually adjusted for each output using the selector switch. If the rated current is exceeded, the output automatically switches off after a defined tripping time and can be switched back on after a short waiting period (thermal rebound) with a button or remote reset. The button also manually switches the output. A multicolored LED displays the output status.
Features
- Adjustable rated current for each channel
- High capacitive loads start up reliably
- The channels switch on sequentially and load-dependent
- Dual-line status query and remote switching of the outputs
- Expanded remote- transfer of input voltage and set rated currents
- Group signal contact for easy remote diagnosis
- Push-in-direct connection technology
