ESG 1 | Block

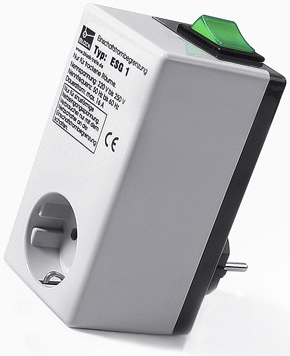

Inrush current limiter, 16 A, 220-250 VAC, ESG 1
Unit Price (€ / pc.)
196.7665 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
196.77 € *
Price list
Quantity
Price per unit*
1 pcs.
196.7665 €
5 pcs.
185.0926 €
*incl. VAT plus shipping costs
**Subject to prior sale
Inrush current limiters, type Block ESG.
For switching loads with high inrush or startup currents. Rated voltage 220 to 250 VAC; Frequency range: 50 to 60 Hz. Rated current: max. 16 A. Integrated thermal fuse in the input circuit. Internal resistance: 3.75 ohm. Sealed. Molded in insulating housing. safety class: I. Ambient temperature: max. +40 °C. Dimensions: W 90, L 130, H 65 mm. Connections: integrated Schuko-style plug, or via 2.0 m power cable, load connection via integrated ground contact socket. Note: The inrush current limiter is not suited for capacitive loads.
Technical attributes (type, version): ESG 1, with integrated Schuko-style plug
Technical specifications
| Version | inrush current limiter | |
| Rated current | 16 A | |
| Voltage | 220-250 VAC |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85363010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
