FL 14/12 | Block

PCB flat transformer, 14 VA, 12 V/12 V, 583 mA/583 mA, 74 %, FL 14/12

Order No.: 35C3428
EAN: 4099891347093
MPN:
FL 14/12
Series: FL
Block

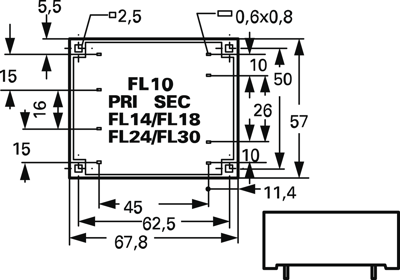

FL 14/12 Block PCB Transformers Image 1
FL 14/12 Block PCB Transformers Image 2
Image may differ
Print
Key Specification:
Output power 14 W
Primary voltage 2 x 115 V
Secondary voltage (1) 12 V
Secondary voltage (2) 12 V
Show 5 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
25.8111 € *
Available: 0 pcs.
Next delivery: 1 pcs. on 2025-01-13
Leadtime: 2 Weeks **
Add to Cart
Total Price:
25.81 € *
Price list
Quantity
Price per unit*
1 pcs.
25.8111 €
5 pcs.
24.2641 €
15 pcs.
23.3359 €
50 pcs.
22.3125 €
150 pcs.
21.3843 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Variations

PCB transformers, flat, type Block FL.

Safety transformer for PCB mounting, epoxy resin molded plastic housing (self-extinguishing to UL 94 V-0)

Rated power 14 VA, type FL 14.
Technical specifications
Output power 14 W
Width 57 mm
Height 24.4 mm
Length 68 mm
Primary voltage 2 x 115 V
Secondary voltage (1) 12 V
Secondary voltage (2) 12 V
Secondary amperage 1 583 mA
secondary amperage 2 583 mA
efficiency 74 %
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 85043180
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
