FL 6/12 | Block

PCB flat transformer, 6 VA, 12 V/12 V, 250 mA/250 mA, 69 %, FL 6/12

Order No.: 35C3368
EAN: 4099891346911
MPN:
FL 6/12
Series: FL
Block
FL 6/12 Block PCB Transformers Image 1
FL 6/12 Block PCB Transformers Image 2
Image may differ
Print
Key Specification:
Output power 6 W
Primary voltage 2 x 115 V
Secondary voltage (1) 12 V
Secondary voltage (2) 12 V
Show 8 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
20.2419 € *
Available: 15 pcs.
Leadtime: 2 Weeks **
Total Price:
20.24 € *
Price list
Quantity
Price per unit*
1 pcs.
20.2419 €
10 pcs.
17.8143 €
50 pcs.
16.6005 €
150 pcs.
15.8627 €
500 pcs.
15.0654 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Variations

PCB transformers, flat, type Block FL.

Safety transformer for PCB mounting, epoxy resin molded plastic housing (self-extinguishing to UL 94 V-0)

Rated power 6.0 VA, type FL 6.
Technical specifications
Output power 6 W

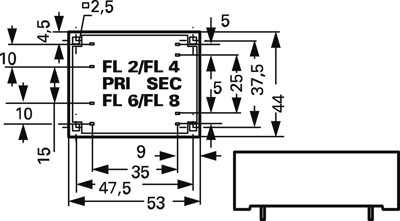

Width 44 mm
Height 22.6 mm
Length 53 mm
Primary voltage 2 x 115 V
Secondary voltage (1) 12 V
Secondary voltage (2) 12 V
Secondary amperage 1 250 mA
secondary amperage 2 250 mA
efficiency 69 %
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 85043180
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
