FL 8/12 | Block

PCB flat transformer, 8 VA, 12 V/12 V, 333 mA/333 mA, 76 %, FL 8/12

Order No.: 35C3388
EAN: 4099891346973
MPN:
FL 8/12
Series: FL
Block
FL 8/12 Block PCB Transformers Image 1
FL 8/12 Block PCB Transformers Image 2
Image may differ
Print
Key Specification:
Output power 8 W
Primary voltage 2 x 115 V
Secondary voltage (1) 12 V
Secondary voltage (2) 12 V
Show 5 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
22.5029 € *
Available: 13 pcs.
Leadtime: 2 Weeks **
Total Price:
22.50 € *
Price list
Quantity
Price per unit*
1 pcs.
22.5029 €
10 pcs.
19.7897 €
50 pcs.
18.4450 €
150 pcs.
17.6477 €
500 pcs.
16.7433 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Variations

PCB transformers, flat, type Block FL.

Safety transformer for PCB mounting, epoxy resin molded plastic housing (self-extinguishing to UL 94 V-0)

Rated power 8.0 VA, type FL 8.
Technical specifications
Output power 8 W

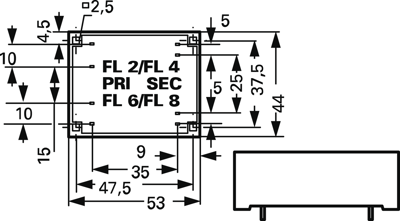

Width 44 mm
Height 22.6 mm
Length 53 mm
Primary voltage 2 x 115 V
Secondary voltage (1) 12 V
Secondary voltage (2) 12 V
Secondary amperage 1 333 mA
secondary amperage 2 333 mA
efficiency 76 %
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 85043180
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
