PT 13/2/18 | Block

PCB transformer, 13 VA, 18 V/18 V, 361 mA/361 mA, 73 %, PT 13/2/18

Order No.: 37C354
EAN: 4099891347581
MPN:
PT 13/2/18
Series: PT
Block

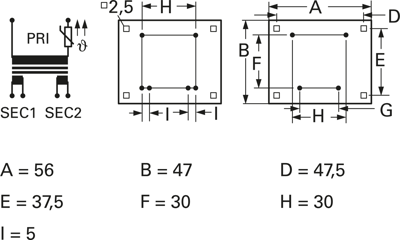

PT 13/2/18 Block PCB Transformers Image 1
PT 13/2/18 Block PCB Transformers Image 2
Image may differ
Print
Key Specification:
Output power 13 W
Primary voltage 230 V
Secondary voltage (1) 18 V
Secondary voltage (2) 18 V
Show 8 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
25.0376 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Add to Cart
Total Price:
25.04 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
25.0376 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

PCB transformers with overload protection to VDE, type Block PT.

Safety transformer, molded design, for soldering to PCBs

With rated power 13 VA, type PT 13.
Technical specifications
Output power 13 W
Width 47 mm
Height 40 mm
Length 56 mm
Primary voltage 230 V
Secondary voltage (1) 18 V
Secondary voltage (2) 18 V
Secondary amperage 1 361 mA
secondary amperage 2 361 mA
efficiency 73 %
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 85043180
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
