PT 4,5/2/12 | Block

PCB transformer, 4.5 VA, 12 V/12 V, 187 mA/187 mA, 65 %, PT 4,5/2/12

Order No.: 37C312
EAN: 4099891347468
MPN:
PT 4,5/2/12
Series: PT
Block
PT 4,5/2/12 Block PCB Transformers Image 1
PT 4,5/2/12 Block PCB Transformers Image 2
Image may differ
Print
Key Specification:
Output power 4.5 W
Primary voltage 230 V
Secondary voltage (1) 12 V
Secondary voltage (2) 12 V
Show 8 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
19.6826 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Add to Cart
Total Price:
19.68 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
19.6826 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

PCB transformers with overload protection to VDE, type Block PT.

Safety transformer, molded design, for soldering to PCBs

With rated power 4.5 VA, type PT 4,5.
Technical specifications
Output power 4.5 W

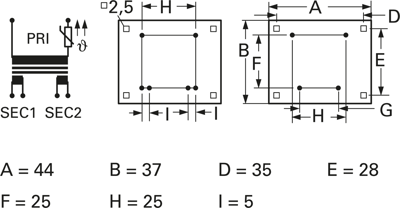

Width 37 mm
Height 33 mm
Length 44 mm
Primary voltage 230 V
Secondary voltage (1) 12 V
Secondary voltage (2) 12 V
Secondary amperage 1 187 mA
secondary amperage 2 187 mA
efficiency 65 %
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 85043180
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
