VB 1,5/2/12 | Block

PCB transformer, 1.5 VA, 12 V/12 V, 62 mA/62 mA, 57 %, VB 1,5/2/12

Order No.: 37C590
EAN: 4099891347819
MPN:
VB 1,5/2/12
Series: VB
Block

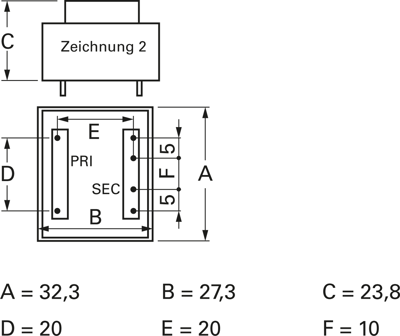

VB 1,5/2/12 Block PCB Transformers Image 1
VB 1,5/2/12 Block PCB Transformers Image 2
Image may differ
Print
Key Specification:
Output power 1.5 W
Primary voltage 230 V
Secondary voltage (1) 12 V
Secondary voltage (2) 12 V
Show 9 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
6.0095 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Add to Cart
Total Price:
6.01 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
6.0095 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

PCB transformers, short circuit-proof, type Block VB.

Safety transformer to DIN EN 61558, VDE 0570, IEC 61558

Rated power 1.5 VA, type VB 1,5.
Technical specifications
Output power 1.5 W
Width 27.3 mm
Height 23.8 mm
Length 32.3 mm
Primary voltage 230 V
Secondary voltage (1) 12 V
Secondary voltage (2) 12 V
Secondary amperage 1 62 mA
secondary amperage 2 62 mA
efficiency 57 %
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 85043180
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
