VB 1,5/2/6 | Block

PCB transformer, 1.5 VA, 6 V/6 V, 125 mA/125 mA, 57 %, VB 1,5/2/6

Order No.: 37C584
EAN: 4099891347796
MPN:
VB 1,5/2/6
Series: VB
Block

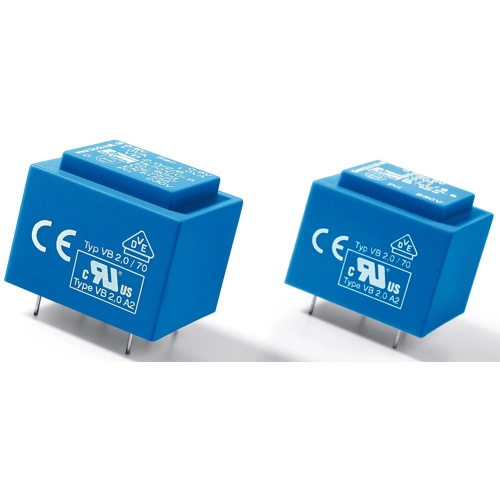

VB 1,5/2/6 Block PCB Transformers Image 1
VB 1,5/2/6 Block PCB Transformers Image 2
Image may differ
Print
Key Specification:
Output power 1.5 W
Primary voltage 230 V
Secondary voltage (1) 6 V
Secondary voltage (2) 6 V
Show 9 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
6.0095 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Add to Cart
Total Price:
6.01 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
6.0095 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

PCB transformers, short circuit-proof, type Block VB.

Safety transformer to DIN EN 61558, VDE 0570, IEC 61558

Rated power 1.5 VA, type VB 1,5.
Technical specifications
Output power 1.5 W

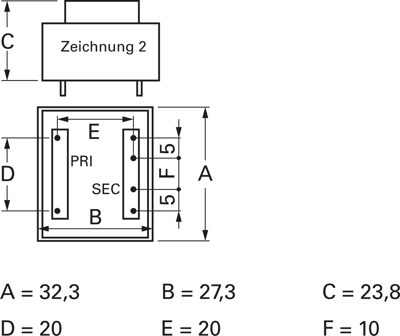

Width 27.3 mm
Height 23.8 mm
Length 32.3 mm
Primary voltage 230 V
Secondary voltage (1) 6 V
Secondary voltage (2) 6 V
Secondary amperage 1 125 mA
secondary amperage 2 125 mA
efficiency 57 %
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 85043180
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
