VB 2,0/2/15 | Block

PCB transformer, 2 VA, 15 V/15 V, 66 mA/66 mA, 52 %, VB 2,0/2/15

Order No.: 37C622
EAN: 4099891347918
MPN:
VB 2,0/2/15
Series: VB
Block

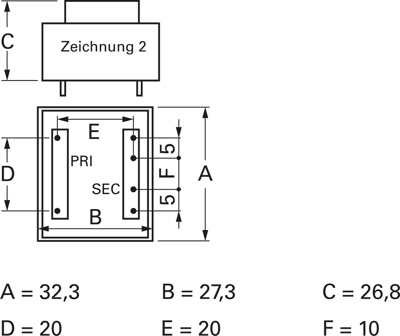

VB 2,0/2/15 Block PCB Transformers Image 1
VB 2,0/2/15 Block PCB Transformers Image 2
Image may differ
Print
Key Specification:
Output power 2 W
Primary voltage 230 V
Secondary voltage (1) 15 V
Secondary voltage (2) 15 V
Show 9 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
6.8068 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Add to Cart
Total Price:
6.81 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
6.8068 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

PCB transformers, short circuit-proof, type Block VB.

Safety transformer to DIN EN 61558, VDE 0570, IEC 61558

Rated power 2.0 VA, type VB 2,0.
Technical specifications
Output power 2 W
Width 27.3 mm
Height 26.8 mm
Length 32.3 mm
Primary voltage 230 V
Secondary voltage (1) 15 V
Secondary voltage (2) 15 V
Secondary amperage 1 66 mA
secondary amperage 2 66 mA
efficiency 52 %
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 85043180
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
