VB 3,2/2/12 | Block

PCB transformer, 3.2 VA, 12 V/12 V, 133 mA/133 mA, 58 %, VB 3,2/2/12

Order No.: 37C710
EAN: 4099891348090
MPN:
VB 3,2/2/12
Series: VB
Block
VB 3,2/2/12 Block PCB Transformers Image 1
VB 3,2/2/12 Block PCB Transformers Image 2
Image may differ
Print
Key Specification:
Output power 3.2 W
Primary voltage 230 V
Secondary voltage (1) 12 V
Secondary voltage (2) 12 V
Show 6 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
8.6156 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Add to Cart
Total Price:
8.62 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
8.6156 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

PCB transformers, short circuit-proof, type Block VB.

Safety transformer to DIN EN 61558, VDE 0570, IEC 61558

Rated power 3.2 VA, type VB 3,2.

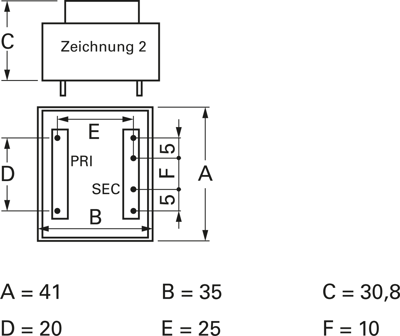

Technical specifications
Output power 3.2 W
Width 35 mm
Height 30.8 mm
Length 41 mm
Primary voltage 230 V
Secondary voltage (1) 12 V
Secondary voltage (2) 12 V
Secondary amperage 1 133 mA
secondary amperage 2 133 mA
efficiency 58 %
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 85043180
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
