VB 3,2/2/15 | Block

PCB transformer, 3.2 VA, 15 V/15 V, 106 mA/106 mA, 58 %, VB 3,2/2/15

Order No.: 37C712
EAN: 4099891348106
MPN:
VB 3,2/2/15
Series: VB
Block
VB 3,2/2/15 Block PCB Transformers Image 1
VB 3,2/2/15 Block PCB Transformers Image 2
Image may differ
Print
Key Specification:
Output power 3.2 W
Primary voltage 230 V
Secondary voltage (1) 15 V
Secondary voltage (2) 15 V
Show 6 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
8.4014 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Add to Cart
Total Price:
8.40 € *
Price list
Quantity
Price per unit*
1 pcs.
8.4014 €
10 pcs.
7.5565 €
50 pcs.
6.8068 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Variations

PCB transformers, short circuit-proof, type Block VB.

Safety transformer to DIN EN 61558, VDE 0570, IEC 61558

Rated power 3.2 VA, type VB 3,2.
Technical specifications

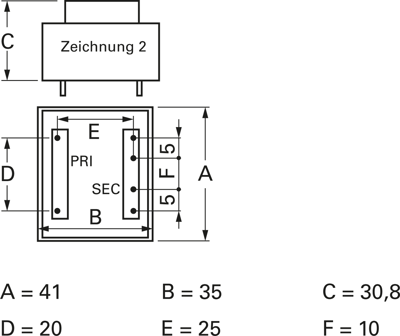

Output power 3.2 W
Width 35 mm
Height 30.8 mm
Length 41 mm
Primary voltage 230 V
Secondary voltage (1) 15 V
Secondary voltage (2) 15 V
Secondary amperage 1 106 mA
secondary amperage 2 106 mA
efficiency 58 %
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 85043180
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
