VC 16/2/24 | Block

PCB transformer, 16 VA, 24 V/24 V, 333 mA/333 mA, 76 %, VC 16/2/24

Order No.: 39C216
EAN: 4099891348397
MPN:
VC 16/2/24
Series: VC
Block

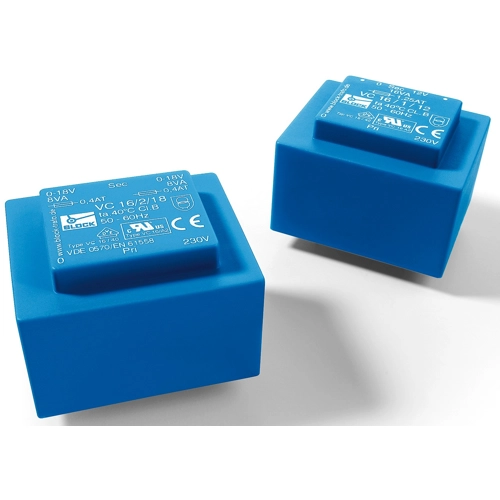

VC 16/2/24 Block PCB Transformers Image 1
VC 16/2/24 Block PCB Transformers Image 2
Image may differ
Print
Key Specification:
Output power 16 W
Primary voltage 230 V
Secondary voltage (1) 24 V
Secondary voltage (2) 24 V
Show 5 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
13.5779 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Add to Cart
Total Price:
13.58 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
13.5779 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

PCB transformers, type Block VC.

With rated power 16 VA, type VC 16.
Technical specifications

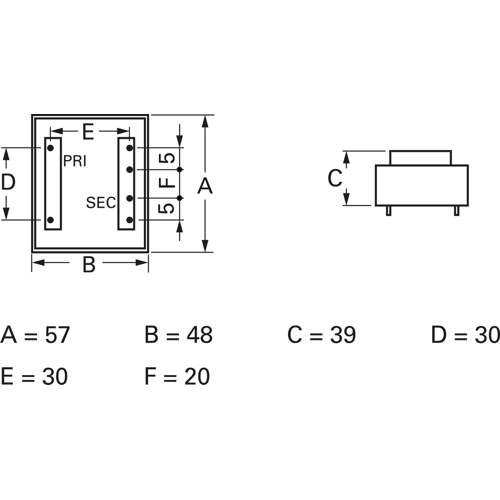

Output power 16 W
Width 48 mm
Height 39 mm
Length 57 mm
Primary voltage 230 V
Secondary voltage (1) 24 V
Secondary voltage (2) 24 V
Secondary amperage 1 333 mA
secondary amperage 2 333 mA
efficiency 76 %
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 85043180
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
