VC 5,0/2/18 | Block

PCB transformer, 5 VA, 18 V/18 V, 138 mA/138 mA, 68 %, VC 5,0/2/18

Order No.: 39C154
EAN: 4099891348304
MPN:
VC 5,0/2/18
Series: VC
Block

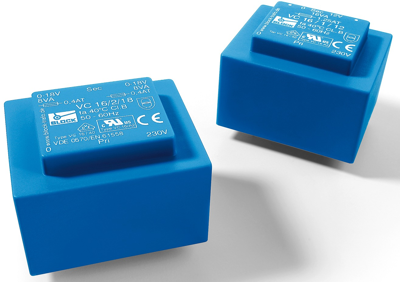

VC 5,0/2/18 Block PCB Transformers Image 1
VC 5,0/2/18 Block PCB Transformers Image 2
Image may differ
Print
Key Specification:
Output power 5 W
Primary voltage 230 V
Secondary voltage (1) 18 V
Secondary voltage (2) 18 V
Show 4 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
10.4720 € *
Available: 5 pcs.
Leadtime: 2 Weeks **
Total Price:
10.47 € *
Price list
Quantity
Price per unit*
1 pcs.
10.4720 €
10 pcs.
9.2106 €
50 pcs.
8.5799 €
150 pcs.
8.2110 €
500 pcs.
7.7826 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Variations

PCB transformers, type Block VC.

With rated power 5.0 VA, type VC 5,0.
Technical specifications
Output power 5 W

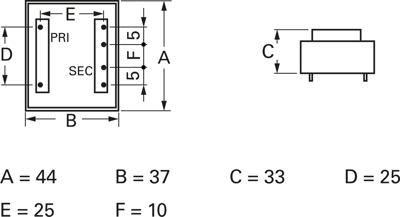

Width 37 mm
Height 33 mm
Length 44 mm
Primary voltage 230 V
Secondary voltage (1) 18 V
Secondary voltage (2) 18 V
Secondary amperage 1 138 mA
secondary amperage 2 138 mA
efficiency 68 %
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 85043180
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
