VCM 16/2/18 | Block

PCB transformer, 16 VA, 18 V/18 V, 444 mA/444 mA, 76 %, VCM 16/2/18

Order No.: 39C384
EAN: 4099891348441
MPN:
VCM 16/2/18
Series: VCM
Block

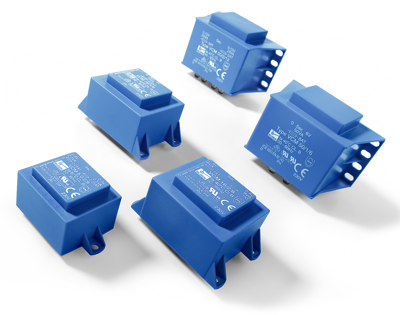

VCM 16/2/18 Block PCB Transformers Image 1

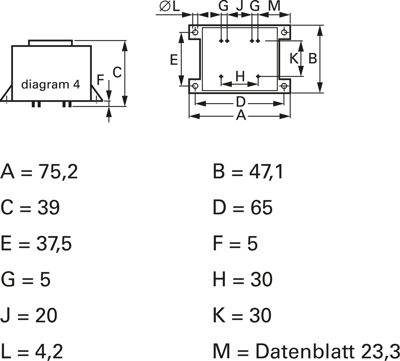

VCM 16/2/18 Block PCB Transformers Image 2
Image may differ
Print
Key Specification:
Output power 16 W
Primary voltage 230 V
Secondary voltage (1) 18 V
Secondary voltage (2) 18 V
Show 4 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
16.4934 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Add to Cart
Total Price:
16.49 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
16.4934 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

PCB transformers w additional mounting option, type Block VCM.

Mounting straps on the housing. Safety transformer to DIN EN 61558, VDE 0570, IEC 61558, double-aperture coil former

With rated power 16 VA, type VCM 16.
Technical specifications
Output power 16 W
Width 47.1 mm
Height 39 mm
Length 75.2 mm
Primary voltage 230 V
Secondary voltage (1) 18 V
Secondary voltage (2) 18 V
Secondary amperage 1 444 mA
secondary amperage 2 444 mA
efficiency 76 %
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 85043180
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
