VCM 50/1/24 | Block

PCB transformer, 50 VA, 24 V, 2.083 A, 87 %, VCM 50/1/24

Order No.: 39C462
EAN: 4099891348489
MPN:
VCM 50/1/24
Series: VCM
Block

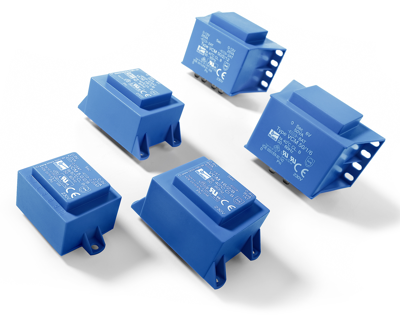

VCM 50/1/24 Block PCB Transformers Image 1
VCM 50/1/24 Block PCB Transformers Image 2
Image may differ
Print
Key Specification:
Output power 50 W
Primary voltage 230 V
Secondary voltage (1) 24 V
Show 4 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
28.6195 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Add to Cart
Total Price:
28.62 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
28.6195 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

PCB transformers w additional mounting option, type Block VCM.

Mounting straps on the housing. Safety transformer to DIN EN 61558, VDE 0570, IEC 61558, double-aperture coil former

Rated power 50 VA, type VCM 50.
Technical specifications

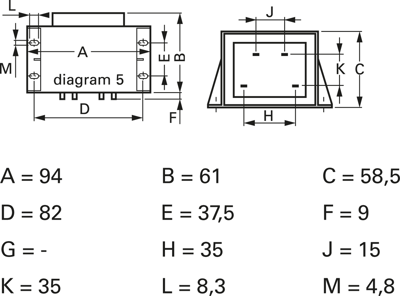

Output power 50 W
Width 61 mm
Height 58.5 mm
Length 94 mm
Primary voltage 230 V
Secondary voltage (1) 24 V
Secondary amperage 1 2.083 A
efficiency 87 %
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 85043180
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
