CLI 200/120 | Block

Enamel insulated copper wire, 120 x 0.1 mm, 0.2 kg, Block CLI 200/120

Order No.: 89F184
EAN: 4099891167462
MPN:
CLI 200/120
Series: CLI
Block

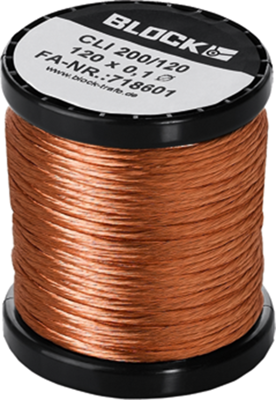

CLI 200/120 Block Winding Wires Image 1

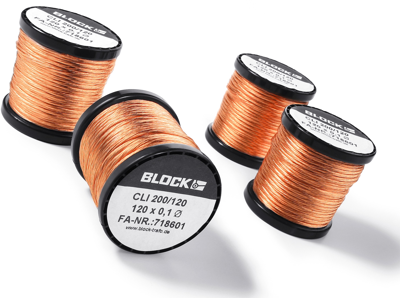

CLI 200/120 Block Winding Wires Image 2
Image may differ
Print
Key Specification:
Insulating varnish polyurethane
Cable structure 120 x 0.1 mm
Max. current 3.36 A
Heat resistance 130 °C

Ordering Information:

Supplied as 200 g coils
Show 5 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
39.2462 € *
Available: 3 pcs.
Leadtime: 2 Weeks **
Total Price:
39.25 € *
Price list
Quantity
Price per unit*
1 pcs.
39.2462 €
5 pcs.
35.9737 €
10 pcs.
32.7012 €
25 pcs.
30.2498 €
50 pcs.
27.7984 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Variations

Enamel insulated stranded copper wire, type Block CLI.

On 200 g coils, compliant with IEC 60317-11, grade 1, solderable
Technical specifications
Heat resistance 130 °C
Weight 200 g
Insulating varnish polyurethane
Length 16 m
Cable structure 120 x 0.1 mm
Max. current 3.36 A
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 85441110
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
