CUL 200/0,15 | Block

Enamel copper wire, 1 x 0.15 mm, 0.2 kg, Block CUL 200/0.15

Order No.: 89F232
EAN: 4099891167608
MPN:
CUL 200/0,15
Series: CUL
Block

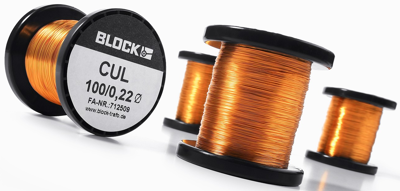

CUL 200/0,15 Block Winding Wires Image 1
CUL 200/0,15 Block Winding Wires Image 2
Image may differ
Print
Key Specification:
Insulating varnish polyurethane
Cable structure 1 x 0.15 mm
Outer diameter 0.15 mm
Max. current 0.06 A
Heat resistance 155 °C

Ordering Information:

Supplied as 200 g coils
Show 27 variants
Download Datasheet Technical specifications
Unit Price (€ / pck.)
24.5854 € *
Available: 4 pck.
Leadtime: 2 Weeks **
Total Price:
24.59 € *
Price list
Quantity
Price per unit*
1 pck.
24.5854 €
10 pck.
21.6342 €
50 pck.
20.1705 €
150 pck.
19.2780 €
500 pck.
18.2903 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Variations

Enamel insulated stranded copper wire, type Block CUL.

Solderable, grade 1

200 g coils, type CUL 200/.
Technical specifications
Outer diameter 0.15 mm
Heat resistance 155 °C
Weight 200 g
Insulating varnish polyurethane
Length 1017 m
Cable structure 1 x 0.15 mm
Max. current 0.06 A
Show similar products 0
Logistics
Country of origin QU
Customs tariff number 85441110
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
