MA-U | bmcm

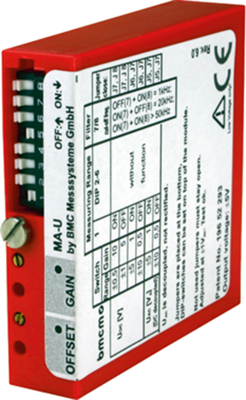

Isolating amplifiers, 5B compatible, multirange, universal, type bmcm MA-.

With electrical isolation, 3 selectable filter reference frequencies and DC or AC isolated input; Case: plastic. Degree of protection: IP 30. Potentials: 60 VDC to VDE, max. 1.0 kV ESD on open line. Operating temperatures: –25 to +70 °C. Dimensions: 52 x 70 x 15 mm.

Multirange amplifiers for voltage measurements, type MA-U.

Can be calibrated; Current source for sensor supply: 4.0 mA, 5.0 or ±12 VDC. Power supply: 5.0 VDC, 50 mA.

Technical attributes (type, number of measuring ranges (MB), bandwidth): MA–U, multirange amplifier, 4 MB, 50 kHz
