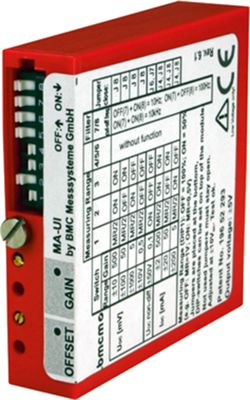

MA-UI | bmcm
Multi-range amplifier, 10 kHz, Plastic, IP 30
Unit Price (€ / pc.)
236.81 € *
Available: 0 pcs.
Leadtime: 1 Week **
Isolating amplifiers, 5B compatible, multirange, universal, type bmcm MA-.
With electrical isolation, 3 selectable filter reference frequencies and DC or AC isolated input; Case: plastic. Degree of protection: IP 30. Potentials: 60 VDC to VDE, max. 1.0 kV ESD on open line. Operating temperatures: –25 to +70 °C. Dimensions: 52 x 70 x 15 mm.
Multirange amplifiers for voltage/current measurements, type MA-UI.
Can be calibrated; Current source for sensor supply: 4.0 mA, 5.0 or ±12 VDC. Power supply: 5.0 VDC, 75 mA.
Technical attributes (type, number of measuring ranges (MB), bandwidth): MA–UI, multirange amplifier, 9 MB, 10 kHz
Technical specifications
| Version | Multi-range amplifier | |
| Output | ±5 VDC | |
| max. operating temperature | 70 °C | |
| min. operating temperature | -25 °C | |
| Assembly | DIN rail |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 90303370 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
