MA-UNI | bmcm

Isolating amplifiers, 5B compatible, multirange, universal, type bmcm MA-.

With electrical isolation, 3 selectable filter reference frequencies and DC or AC isolated input; Case: plastic. Degree of protection: IP 30. Potentials: 60 VDC to VDE, max. 1.0 kV ESD on open line. Operating temperatures: –25 to +70 °C. Dimensions: 52 x 70 x 15 mm.

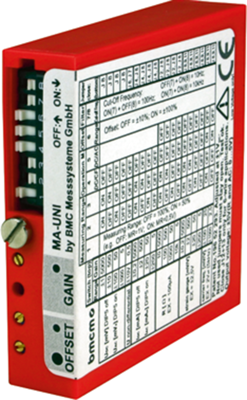

Universal amplifiers, type MA-UNI.

Can be calibrated; Measurements: voltage, current, resistance, temperature, strain gage and modulation frequency. Can be connected to inductive and resistive measuring bridges and transducers. Also suitable for speed measurements using taco generators. With AC rectifier. Generator current: 100 µA or 4.0 mA DC. Power supply: 5.0 VDC, 70 mA.

Technical attributes (type, number of measuring ranges (MB), bandwidth): MA–UNI, universal amplifier, 10 MB, 10 kHz
