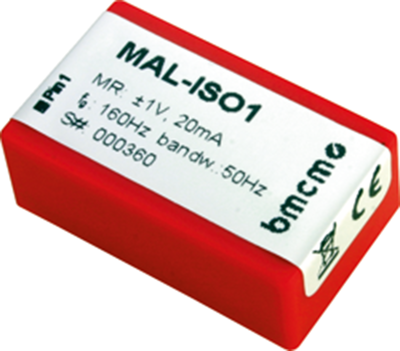

Miniature measuring amplifiers, type bmcm MAL.

24-pin chip. Differential input and 6.0 dB/oct output filter. The module outputs a voltage proportional to the input variable of ±5.0 V. Size and pin assignment compatible to products of other manufacturers. Input circuit protection.1; .0 s: max. 200 V (not for current measurement). Output load: >1.0 kohm. Power supply: ±7.5 to ±15 VDC. ESD resistance: 1000 V. Potentials: max. 60 VDC to VDE. Operating temperatures: –25 to +70 °C. Dimensions: 33 x 20 x 15 mm.

Electrically isolating amplifiers, for voltage and current.

Electrical isolation. type MAL-ISO1 can be converted for current measurements by means of solder jumpers; Output: 5.0 V. Tolerance: 0.1% (MAL-ISO50 0.2%).

Technical attributes (type, measuring range, input resistance): MAL-ISO10, ±10 VDC, 220 kohm
