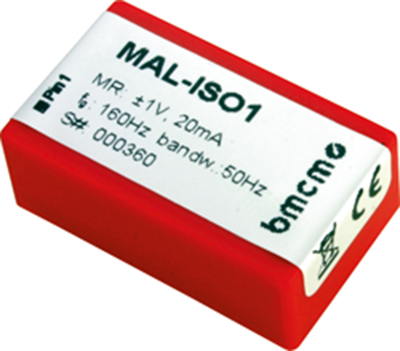

Miniature measuring amplifiers, type bmcm MAL.

24-pin chip. Differential input and 6.0 dB/oct output filter. The module outputs a voltage proportional to the input variable of ±5.0 V. Size and pin assignment compatible to products of other manufacturers. Input circuit protection.1; .0 s: max. 200 V (not for current measurement). Output load: >1.0 kohm. Power supply: ±7.5 to ±15 VDC. ESD resistance: 1000 V. Potentials: max. 60 VDC to VDE. Operating temperatures: –25 to +70 °C. Dimensions: 33 x 20 x 15 mm.

Measuring amplifiers with integrated sensor voltage/current supply.

Supply (5.0 V) for connected sensors, the measured variable and limit frequency can be set by means of soldering jumper; Limit frequency: adjustable from 2.0 to 340 Hz. Tolerance: 0.2 %.

Technical attributes (type, measuring range, input resistance): MAL-U/I, measuring amplifier, ±1.0, ±5.0, ±10 VDC/±20 mA, 300 kohm/50 ohm
