12051809 | Bopla

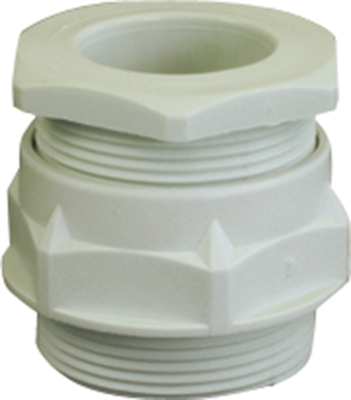

Cable gland, PG7, 13/15 mm, Clamping range 4 to 6 mm, IP65, gray, 12051809
Order No.: 06N310
EAN: 4099891197896
MPN:
12051809
Unit Price (€ / pc.)
0.9877 € *
Available: 81 pcs.
Leadtime: 2 Weeks **
Total Price:
0.99 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9877 €
10 pcs.
0.8806 €
50 pcs.
0.8092 €
100 pcs.
0.7378 €
500 pcs.
0.6783 €
*incl. VAT plus shipping costs
**Subject to prior sale
Polyamide cable glands with strain relief, type Bopla POZ.
Particularly short version; Degree of protection: IP 65. Made of high-quality polyamide, resistant to oils and chemicals, high mechanical strength. Operating temperatures: –30 to +100 °C. Design: with strain relief, no anti-kink guard. Color: gray.
Technical attributes (type, size, terminal range, width across flats): POZ 07, cable gland, Pg 7, 4.0 to 6.0 mm, W 15/13
Technical specifications
| Version | Kabelverschraubung | |
| Colour | grau | |
| Thread size | PG7 | |
| Material | PA | |
| max. clamping range | 6 mm | |
| max. operating temperature | 100 °C | |
| min. clamping range | 4 mm | |
| min. operating temperature | -30 °C | |
| spanner size | 13/15 mm | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39174000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
