32206000 | Bopla
PS enclosure, (L x W x H) 200 x 112 x 64 mm, light gray, IP40, 32206000
Unit Price (€ / pc.)
29.9285 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
29.93 € *
Price list
Quantity
Price per unit*
1 pcs.
29.9285 €
5 pcs.
26.9178 €
10 pcs.
24.2760 €
*incl. VAT plus shipping costs
**Subject to prior sale

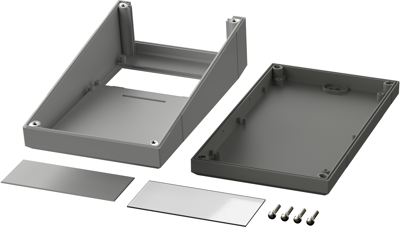

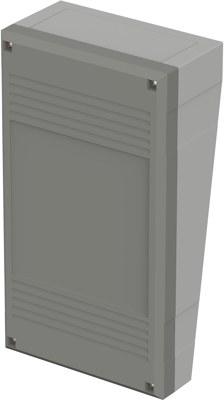

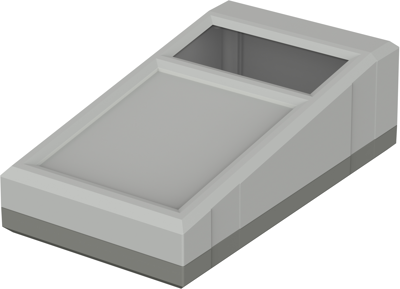

Plastic enclosures, type Bopla Elegant EG.
With enclosed recessed desk area with/without display cut-out. Made of impact-resistant polystyrene; Color: top section light-gray (RAL 7035), base shell and front panel agate-gray (RAL 7038). Finish: structured cover area, smooth sides. Screw locking: M 3, from the bottom. The housing is supplied with plastic rear panel and equipped with internal mounting cams.
With display cut-out, type EG.
Membrane keyboard area (1; .0 mm deep)/viewing area of a display unit: type 2060 PD 87 x 105 (2.0 mm deep)/87 x 38.4 mm. Supplied with display pane.
Technical attributes (type, overall dimensions): 2060 PD, W 112, L 200, H 64 mm
Technical specifications
| Width | 112 mm | |
| Colour | light gray | |
| Height | 64 mm | |
| Length | 200 mm | |
| Material | PS | |
| Degree of protection (IP) | IP40 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
