02228000 | Bopla

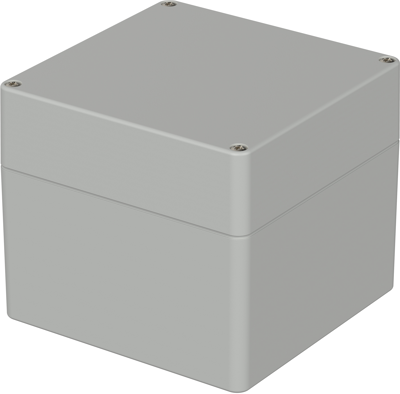

PC enclosure, (L x W x H) 122 x 120 x 105 mm, light gray (RAL 7035), IP65, 02228000
Unit Price (€ / pc.)
48.5877 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
48.59 € *
Price list
Quantity
Price per unit*
1 pcs.
48.5877 €
10 pcs.
43.7206 €
50 pcs.
39.3533 €
100 pcs.
35.4144 €
*incl. VAT plus shipping costs
**Subject to prior sale
Plastic enclosures, type Multi-Box/Bopla/Rose.

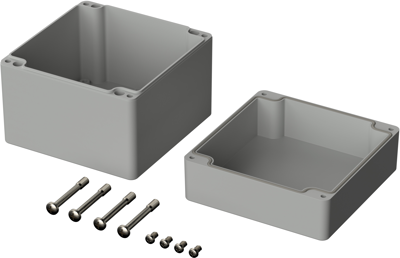

Made of ABS or polycarbonate PC (macrolon), sealed with tongue-and-groove system (encircling PUR or CR round seal in the lid grooves). Lid and base shell joined with captive stainless steel lid screws. Screw channels in a recess outside of the sealed compartment. With mounting pedestals in the base for easy installation of mounting rails, switching elements, terminal blocks etc; Degree of protection to DIN 40050: IP 65. Operating temperature ABS/PC: -40 to +80 °C/ -40 to +100 °C. Combustibility to UL 94 ABS/PC: HB/V 2. Dielectric strength ABS/PC: 24/30 kV. Color: light-gray RAL 7035.
Made of polycarbonate/macrolon.
Technical attributes (type, outer dimension, lid height (LH)): 02228000, W 120, L 122, H 105 mm, LH 35
Technical specifications
| Breite | 120 mm | |
| Farbe | lichtgrau | |
| Höhe | 105 mm | |
| Länge | 122 mm | |
| Material | PC | |
| RAL-Farbnummer | 7035 | |
| Schutzart (IP) | IP65 |
Download
Logistics
| Ursprungsland | RO |
| Zolltarifnummer | 39269097 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
