02242000 | Bopla

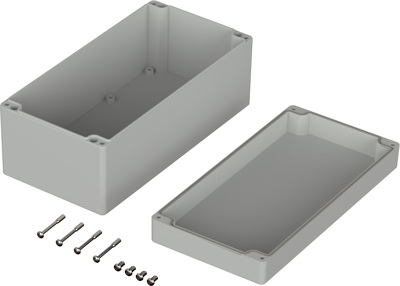

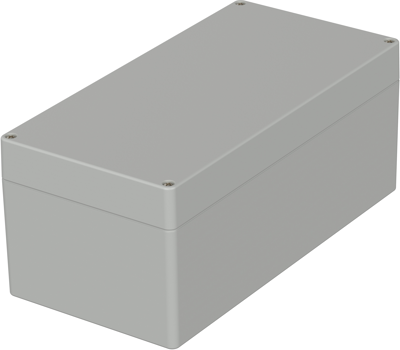

PC enclosure, (L x W x H) 240.5 x 120 x 100.5 mm, light gray (RAL 7035), IP65, 02242000
Unit Price (€ / pc.)
59.2620 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
59.26 € *
Price list
Quantity
Price per unit*
1 pcs.
59.2620 €
10 pcs.
53.3239 €
50 pcs.
47.9927 €
100 pcs.
43.1970 €
*incl. VAT plus shipping costs
**Subject to prior sale
Plastic enclosures, type Multi-Box/Bopla/Rose.
Made of ABS or polycarbonate PC (macrolon), sealed with tongue-and-groove system (encircling PUR or CR round seal in the lid grooves). Lid and base shell joined with captive stainless steel lid screws. Screw channels in a recess outside of the sealed compartment. With mounting pedestals in the base for easy installation of mounting rails, switching elements, terminal blocks etc; Degree of protection to DIN 40050: IP 65. Operating temperature ABS/PC: -40 to +80 °C/ -40 to +100 °C. Combustibility to UL 94 ABS/PC: HB/V 2. Dielectric strength ABS/PC: 24/30 kV. Color: light-gray RAL 7035.
Made of polycarbonate/macrolon.
Technical attributes (type, outer dimension, lid height (LH)): 02242000, W 120, L 240, H 100 mm, LH 25
Technical specifications
| Width | 120 mm | |
| Colour | light gray | |
| Height | 100.5 mm | |
| Length | 240.5 mm | |
| Material | PC | |
| RAL number | 7035 | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
