03215000 | Bopla

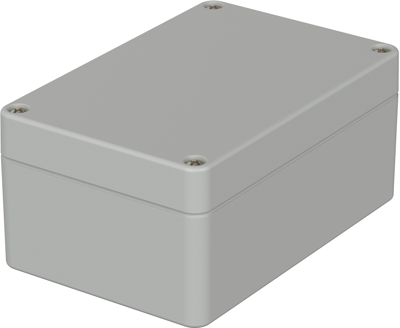

ABS enclosure, (L x W x H) 120 x 80 x 55 mm, light gray (RAL 7035), IP65, 03215000
Unit Price (€ / pc.)
23.1336 € *
Available: 35 pcs.
Leadtime: 2 Weeks **
Total Price:
23.13 € *
Price list
Quantity
Price per unit*
1 pcs.
23.1336 €
5 pcs.
21.7532 €
15 pcs.
20.9083 €
50 pcs.
19.9920 €
150 pcs.
19.1590 €
*incl. VAT plus shipping costs
**Subject to prior sale
Plastic enclosures, type Bopla

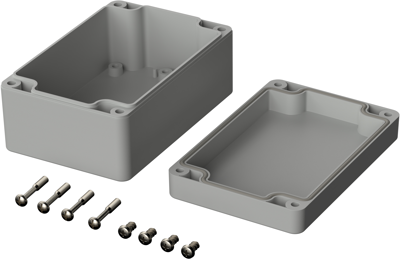

Made of ABS sealed with tongue-and-groove system (encircling PUR or CR round seal in the lid grooves). Lid and base shell joined with captive stainless steel lid screws. Screw channels in a recess outside of the sealed compartment. With mounting pedestals in the base for easy installation of mounting rails, switching elements, terminal blocks etc.
Degree of protection to DIN 40050: IP 65
Operating temperature ABS/PC: - 40 to +80 °C/ - 40 to +100 °C
Combustibility to UL 94 ABS/PC: HB/V 2
Dielectric strength ABS/PC: 24/30 kV. Color: light-gray RAL 7035
Technical attributes (type, outer dimension, lid height (LH)): 03215000, W 80, L 120, H 55 mm, LH 15
Technical specifications
| Width | 80 mm | |
| Colour | light gray | |
| Height | 55 mm | |
| Length | 120 mm | |
| Material | ABS | |
| RAL number | 7035 | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
