63210200 | Bopla

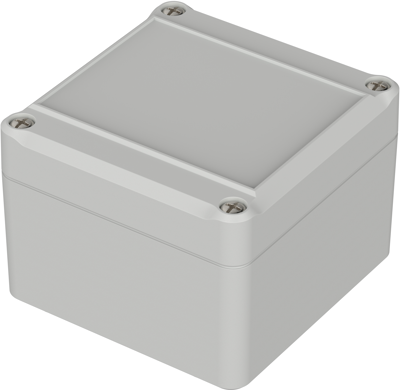

ABS enclosure, (L x W x H) 82 x 80 x 57 mm, light gray (RAL 7035), IP65, 63210200
Unit Price (€ / pc.)
18.8258 € *
Available: 29 pcs.
Leadtime: 2 Weeks **
Total Price:
18.83 € *
Price list
Quantity
Price per unit*
1 pcs.
18.8258 €
10 pcs.
16.5648 €
50 pcs.
15.4462 €
150 pcs.
14.7679 €
500 pcs.
14.0063 €
*incl. VAT plus shipping costs
**Subject to prior sale
Plastic enclosures, type Bopla Euromas II.

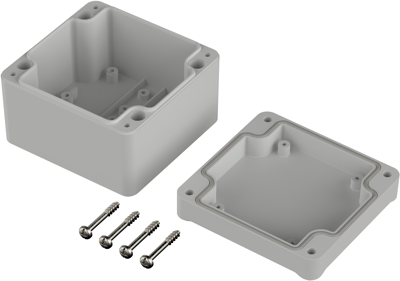

Top shell with 1.0 mm recessed area for flush mounting of membrane keyboards or similar; Material: ABS, color: light-gray RAL 7035. Features: mounting cams for self-forming screws in the base shell, additional cams on the inside of the top shell, lid screws: V2A, lid gasket: cellular rubber cord (Neoprene) in top shell groove. Degree of protection: IP 65/DIN VDE 0470.
Technical attributes (type, overall dimensions, top height (LH)): ET210F, W 80, L 82, H 57 mm, LH 10
Technical specifications
Width | 80 mm | |
Colour | lichtgrau | |
Height | 57 mm | |
Length | 82 mm | |
Material | ABS | |
RAL number | 7035 | |
Degree of protection (IP) | IP65 |
Download
Logistics
Country of origin | HU |
Customs tariff number | 39269097 |
Compliance
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | Yes |
