63213200 | Bopla

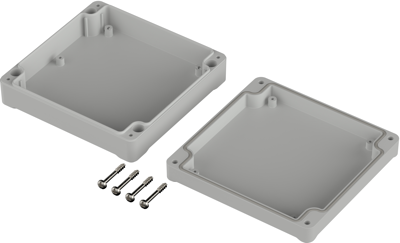

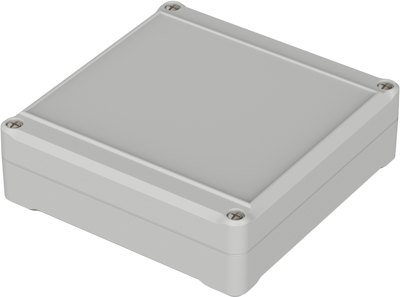

ABS enclosure, (L x W x H) 122 x 120 x 37 mm, light gray (RAL 7035), IP65, 63213200
Unit Price (€ / pc.)
21.9317 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
21.93 € *
Price list
Quantity
Price per unit*
1 pcs.
21.9317 €
10 pcs.
19.7302 €
50 pcs.
17.7786 €
100 pcs.
15.9817 €
*incl. VAT plus shipping costs
**Subject to prior sale
Plastic enclosures, type Bopla Euromas II.
Top shell with 1.0 mm recessed area for flush mounting of membrane keyboards or similar; Material: ABS, color: light-gray RAL 7035. Features: mounting cams for self-forming screws in the base shell, additional cams on the inside of the top shell, lid screws: V2A, lid gasket: cellular rubber cord (Neoprene) in top shell groove. Degree of protection: IP 65/DIN VDE 0470.
Technical attributes (type, overall dimensions, top height (LH)): ET213F, W 120, L 122, H 37 mm, LH 15
Technical specifications
| Width | 120 mm | |
| Colour | light gray | |
| Height | 37 mm | |
| Length | 122 mm | |
| Material | ABS | |
| RAL number | 7035 | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 76161000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
