84207200.MT1 | Bopla

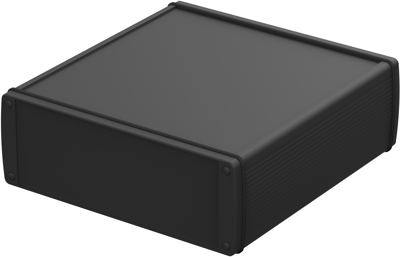

Aluminum enclosure, (L x W x H) 200 x 210 x 74 mm, black, IP65, 84207200.MT1
Unit Price (€ / pc.)
112.2170 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
112.22 € *
Price list
Quantity
Price per unit*
1 pcs.
112.2170 €
10 pcs.
101.0072 €
50 pcs.
90.9041 €
*incl. VAT plus shipping costs
**Subject to prior sale
Aluminum enclosures, type Bopla Alubos ABP.

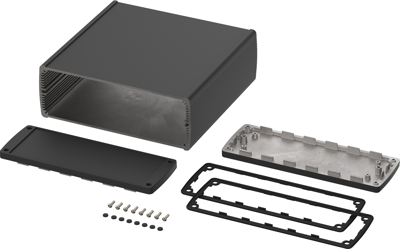

Rugged enclosure with good EMC attenuation values and high degree of protection IP 65; Enclosure surface: black, structured, highly resistant to scratching. With integrated guide grooves for PCBs. Items supplied include two terminating walls with 1.0 mm recess for membranes (as front and rear panel), black seals, screws and screw covers.
Technical attributes (type, overall dimensions): ABP 2070-0200, W 210, L 200, H 74 mm.
Technical specifications
| Width | 210 mm | |
| Colour | black | |
| Height | 74 mm | |
| Length | 200 mm | |
| Material | aluminum | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 76042100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
