94122200.MT1 | Bopla
Aluminum enclosure, (L x W x H) 200 x 98.5 x 32.8 mm, gray, IP65, 94122200.MT1
Unit Price (€ / pc.)
72.3877 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
72.39 € *
Price list
Quantity
Price per unit*
1 pcs.
72.3877 €
5 pcs.
65.1287 €
*incl. VAT plus shipping costs
**Subject to prior sale

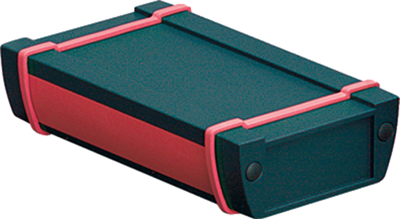

Aluminum enclosures, type Bopla ALUSTYLE.
Portable, wall, or bench enclosure; Structure: entire top panel with evenly distributed grooves of the same grid. Material: extruded profile AlMgSi0.5, die-cast lid of zinc alloy Z410. Degree of protection: IP 65. Color: graphite-gray, height (outer): 32.8 mm. Supplied with enclosure, 2 covering lids, colored cover seals and decorative strips.
Technical attributes (type, outer dimensions: L, color (seal and decorative strip)): ASPH 1030-200, L 200, W 98.5 mm, red
Technical specifications
| Width | 98.5 mm | |
| Colour | grau | |
| Height | 32.8 mm | |
| Length | 200 mm | |
| Material | Aluminium | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 76042100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
