1140-102K-RC | Bourns Electronics GmbH

Name: High current choke, radial, 1000 µH, 1140-102K-RC
Brand: Bourns Electronics GmbH
SKU: 05D5421
Price: 10.56 EUR
Availability: OutOfStock

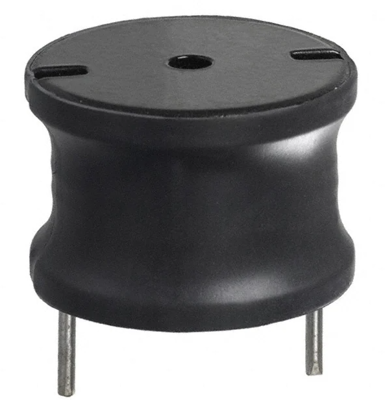

High current choke, radial, 1000 µH, 1140-102K-RC

Order No.: 05D5421

EAN: 4099879996206

MPN:

1140-102K-RC

Series: 1140

Image may differ

Key Specification:

Version High current choke

Inductance 1000 µH

Tolerance ±10 %

DC resistance 216 mΩ

Download Datasheet Technical specifications

Unit Price (€ / pc.)

10.5553 € *

Available: 0 pcs.

Leadtime: 9 Weeks **

Add to Cart

Total Price:

10.56 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

High current choke, 1140-102K-RC, Bourns

Features

Very high current capacity
Epoxy coated ferrite bobbin core
Low DCR
Center hole for mechanical mounting
Fixed lead spacing

Technical specifications

	Version	High current choke
	Design	radial
	DC resistance	216 mΩ
	Height	26.16 mm
	Inductance	1000 µH
	Measuring frequency	1 kHz
	Saturation current	6.5 A
	Tolerance	±10 %
