CM453232-220KL | Bourns Electronics GmbH

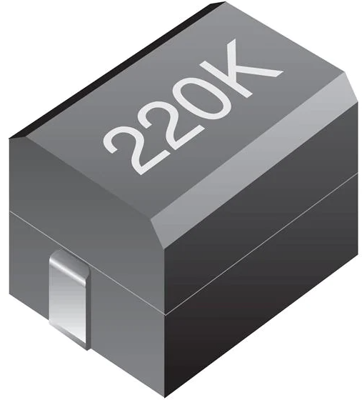

Choke, SMD, 22 µH, 180 mA, CM453232-220KL
Unit Price (€ / pc.)
0.4165 € *
Available: 300 pcs.
Leadtime: 24 Weeks **
Total Price:
0.42 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4165 €
10 pcs.
0.2975 €
100 pcs.
0.2475 €
500 pcs.
0.2154 €
1000 pcs.
0.1868 €
*incl. VAT plus shipping costs
**Subject to prior sale
Chip inductor, CM453232-220KL, Bourns
Features
- High resistance to heat and humidity
- Resistance to mechanical shock and pressure
- Accurate dimensions for automatic surface mounting
- RoHS compliant
Applications
- Mobile phones
- Cellular phones
- CTV, VCR, HIC, FDD
Technical specifications
| Version | Chip inductor | |
| Design | SMD | |
| Width | 3.2 mm | |
| DC current | 180 mA | |
| DC resistance | 3.2 Ω | |
| Quality Q | Q 50 | |
| Height | 3.2 mm | |
| Inductance | 22 µH | |
| Length | 4.5 mm | |
| Measuring frequency | 2.52 MHz | |
| Tolerance | ±10 % |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85045000 |
| Original Packaging | Reel with 500 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
