SDR0403-2R2ML | Bourns Electronics GmbH

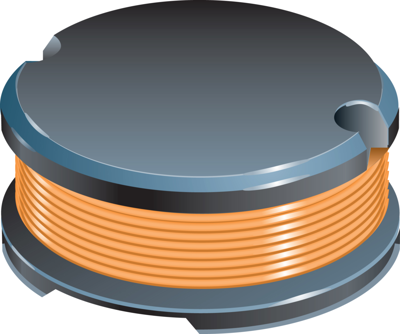

Power choke, SMD, 2.2 µH, 2600 mA, SDR0403-2R2ML
Unit Price (€ / pc.)
0.2630 € *
Available: 0 pcs.
Leadtime: 16 Weeks **
Power inductor, SDR0403-2R2ML, BOURNS
Features
- Low inductance
- Low profile of only 3.2 mm
- Ferrite core
- RoHS compliant
Applications
- Input/output of DC/DC converters
- Portable communications equipment
- Camcorders
- LCD TVs
Technical specifications
| Ausführung | Leistungsdrossel | |
| Bauform | SMD | |
| Breite | 4 mm | |
| Gleichstrom | 2600 mA | |
| Gleichstromwiderstand | 47 mΩ | |
| Gütefaktor Q | Q 28 | |
| Höhe | 3.2 mm | |
| Induktivität | 2.2 µH | |
| Länge | 4.5 mm | |
| Messfrequenz | 7.96 MHz | |
| Toleranz | ±20 % |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85045000 |
| MSL | MSL 1 |
| Originalverpackung | Rolle mit 2.000 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
