SRN5040-4R7M | Bourns Electronics GmbH
Power choke, SMD, 4.7 µH, 3.1 A, SRN5040-4R7M
Unit Price (€ / pc.)
0.3570 € *
Available: 598 pcs.
Leadtime: 16 Weeks **
Total Price:
3.57 € *
Price list
Quantity
Price per unit*
10 pcs.
0.3570 €
50 pcs.
0.3094 €
250 pcs.
0.2808 €
1000 pcs.
0.2547 €
2000 pcs.
0.2321 €
*incl. VAT plus shipping costs
**Subject to prior sale
Power inductor, SRN5040-4R7M, BOURNS
Features
- Semi-shielded construction
- Ferrite core
- Halogen free
- RoHS compliant
Applications
- DC/DC converters
- Notebook computers
- Digital video cameras
- Televisions, LCD displays

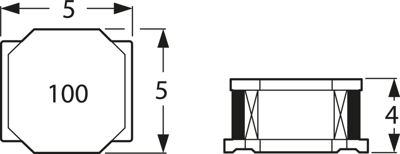

Technical specifications
| Ausführung | Leistungsdrossel | |
| Bauform | SMD | |
| Breite | 5 mm | |
| Gleichstrom | 3.1 A | |
| Gleichstromwiderstand | 0.035 Ω | |
| Gütefaktor Q | Q 15 | |
| Höhe | 4 mm | |
| Induktivität | 4.7 µH | |
| Länge | 5 mm | |
| Messfrequenz | 100 kHz | |
| Sättigungsstrom | 3.3 A | |
| Toleranz | ±20 % |
Download
Logistics
| Ursprungsland | MY |
| Zolltarifnummer | 85045000 |
| MSL | MSL 1 |
| Originalverpackung | Rolle mit 1.000 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
