SRN6045-220M | Bourns Electronics GmbH
Power choke, SMD, 22 µH, 1500 mA, SRN6045-220M
Unit Price (€ / pc.)
0.5653 € *
Available: 1,000 pcs.
Leadtime: 12 Weeks **
Total Price:
0.57 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5653 €
10 pcs.
0.4034 €
100 pcs.
0.3368 €
500 pcs.
0.2927 €
1000 pcs.
0.2666 €
*incl. VAT plus shipping costs
**Subject to prior sale

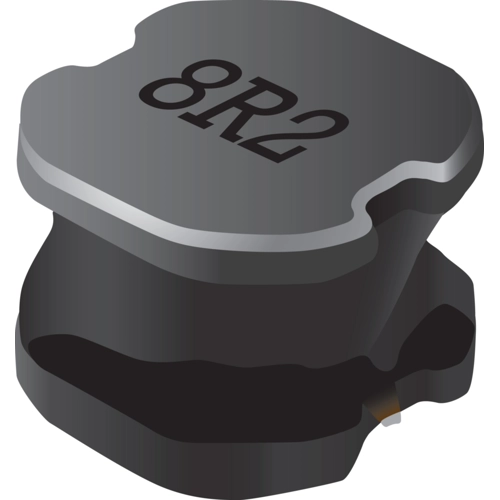

Power inductor, SRN6045-220M, BOURNS
Features
- Semi-shielded construction
- High rated current

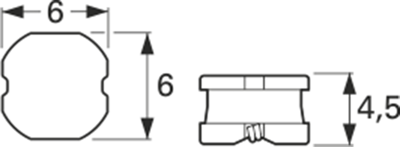

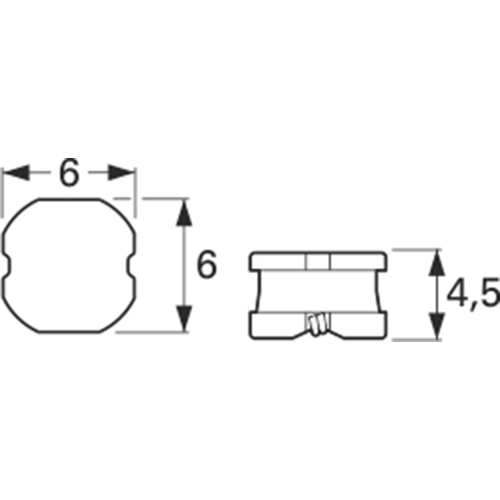

- Component height 4.5 mm
- Halogen free
- RoHS compliant
Applications
- DC/DC converters
- Notebook computers
- Digital video cameras
- Televisions, LCD displays
Technical specifications
| Ausführung | Leistungsdrossel | |
| Bauform | SMD | |
| Breite | 6 mm | |
| Gleichstrom | 1500 mA | |
| Gleichstromwiderstand | 142 mΩ | |
| Gütefaktor Q | Q 17 | |
| Höhe | 4.2 mm | |
| Induktivität | 22 µH | |
| Länge | 6 mm | |
| Messfrequenz | 2.52 MHz | |
| Sättigungsstrom | 1 A | |
| Toleranz | ±20 % |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85045000 |
| Originalverpackung | Rolle mit 1.000 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
