SRU1048-101Y | Bourns Electronics GmbH

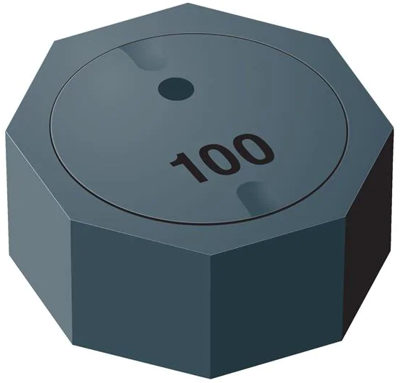

Power choke, SMD, 100 µH, SRU1048-101Y
Unit Price (€ / pc.)
1.1781 € *
Available: 600 pcs.
Leadtime: 14 Weeks **
Total Price:
1.18 € *
Price list
Quantity
Price per unit*
1 pcs.
1.1781 €
10 pcs.
0.8413 €
100 pcs.
0.7009 €
500 pcs.
0.6093 €
1000 pcs.
0.5545 €
*incl. VAT plus shipping costs
**Subject to prior sale
Power inductor, SRU1048-101Y, Bourns
Features
- Height of 4.8 mm
- Ferrite core
- RoHS compliant
Applications
- Input/output of DC/DC converters
- Portable communications equipment
- Camcorders
- LCD TVs
- Car radios
Technical specifications
| Version | SMD choke | |
| Design | SMD | |
| Width | 10 mm | |
| DC resistance | 220 mΩ | |
| Quality Q | Q 26 | |
| Height | 4.8 mm | |
| Inductance | 100 µH | |
| Length | 10 mm | |
| Measuring frequency | 0.796 MHz | |
| Saturation current | 1 A | |
| Tolerance | ±30 % |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85045000 |
| Original Packaging | Reel with 600 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
