SF-0603F200-2 | Bourns Electronics GmbH
SMD-Fuse SMD 0603, 2 A, F, 32 V (DC), 50 A breaking capacity, SF-0603F200-2
Unit Price (€ / pc.)
0.4760 € *
Available: 0 pcs.
Leadtime: 14 Weeks **

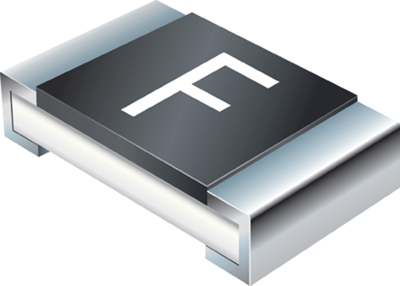

SMD-Fuse, SF-0603F200-2, BOURNS
The SF-0603F200-2 is a SMT fast-acting fuse that is designed to protect less sensitive components and is also used to protect cabling from melting or catching fire when an overload occurs.
Features
- Fast acting thin film chip fuse for overcurrent protection
- 1608 miniature footprint
- Surface mount packaging for automated assembly
- RoHS-compatible and halogen free
Applications
- Portable memory
- LCD monitors
- Rechargeable battery pack
- Industrial controllers
- Digital cameras
Technical specifications
| Ausführung | SMD-Sicherung | |
| Auslösecharakteristik | F | |
| Ausschaltvermögen | 50 A | |
| Bauform | SMD 0603 | |
| Breite | 0.8 mm | |
| Gehäuse | SMD | |
| Höhe | 0.45 mm | |
| Länge | 1.6 mm | |
| Nennspannung (DC) | 32 V | |
| Nennstrom | 2 A |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85361010 |
| MSL | MSL 1 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
