AMS22S5A1BHAFL334 | Bourns Electronics GmbH

Analogue position sensor, -40 °C, 125 °C, 340 °

Order No.: 18G571
EAN: 4099889458206
MPN:
AMS22S5A1BHAFL334
Series: AMS22

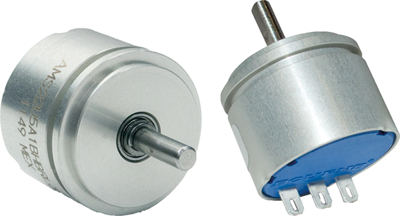

AMS22S5A1BHAFL334 Bourns Electronics GmbH Position Sensors Image 1

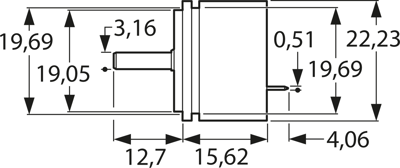

AMS22S5A1BHAFL334 Bourns Electronics GmbH Position Sensors Image 2
Image may differ
Unit Price (€ / pc.)
47.9213 € *
Available: 0 pcs.
Leadtime: 42 Weeks **
Total Price:
2,396.07 € *
*incl. VAT plus shipping costs
**Subject to prior sale
50 pcs.
47.9213 €

Non-contacting analog rotary position sensors, type Bourns AMS22.

Supply voltage (VDD): 5.0 V. Operating temperatures: –40 to +125 °C. Degree of protection: IP 50.

For servo assembly, type AMS22S.

Shaft: flattened. Revolutions: max. 200/min.

Technical attributes (type, supply current, linearity, electrical revolutions): AMS22S5A1BHAFL334, 20 mA, ±0.5 %, 340°

Technical specifications
Number of pins 3
Version analog
max. operating temperature 125 °C
min. operating temperature -40 °C
Assembly Panelmontage
Rated voltage (DC) 5 V
Rated current 20 mA
Degree of protection (IP) IP50
Revolutions 340 °
Logistics
Country of origin MX
Customs tariff number 85414100
Original Packaging Tray mit 25 Stück
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
