3310H-001-105L | Bourns Electronics GmbH

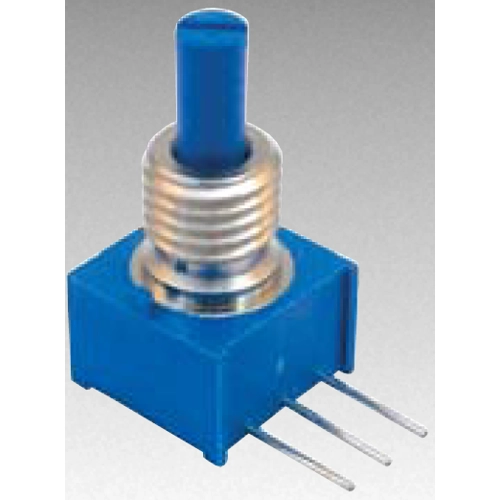

Conductive plastic potentiometer, 1 MΩ, 0.25 W, linear, solder pin, 3310H-001-105L

Order No.: 06E1139
EAN: 4099879948403
MPN:
3310H-001-105L
Series: 3310
3310H-001-105L Bourns Electronics GmbH Potentiometers
Image may differ
Unit Price (€ / pc.)
7.0924 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Total Price:
709.24 € *
*incl. VAT plus shipping costs
**Subject to prior sale
100 pcs.
7.0924 €

Conductive plastic potentiometer, 3310H-001-105L, Bourns Electronics GmbH

This conductive plastic potentiometer withstands typical industrial washing processes.

Features

  • PC board and bushing mount
  • Compact package saves board and panel space
  • RoHS compliant
Technical specifications
Ausführung Leitplastik Potentiometer
ohmscher Widerstand 1 MΩ
Leistung 0.25 W
Montage gerade
Widerstandsverlauf linear
Drehbereich (elektrisch) 270 °
Drehbereich (mechanisch) 300 °
max. Anzahl der Umdrehungen 1
Durchmesser der Achse 3.18 mm
Anschluss Lötstift
Kontaktabstand RM 2,54
Länge 9.53 mm
Breite 9.75 mm
min. Temperatur -40 °C
max. Temperatur 125 °C
Logistics
Ursprungsland MX
Zolltarifnummer 85334010
MSL MSL 1
Originalverpackung Stange mit 50 Stück
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
