3310P-001-104L | Bourns Electronics GmbH

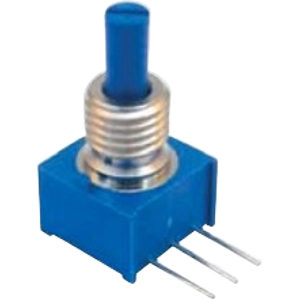

Conductive plastic potentiometer, 100 kΩ, 0.25 W, linear, solder pin, 3310P-001-104L
Unit Price (€ / pc.)
2.499 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Conductive plastic potentiometer, 3310P-001-104L, Bourns Electronics GmbH
This conductive plastic potentiometer withstands typical industrial washing processes.
Features
- PC board and bushing mount
- Compact package saves board and panel space
- RoHS compliant
Technical specifications
| ohmic resistance | 100 kΩ | |
| Connection | solder pin | |
| Version | conductive plastic potentiometer | |
| Width | 9.53 mm | |
| Rotary range, electrical | 270 ° | |
| Mechanic rotary range | 300 ° | |
| axle diameter | 3.18 mm | |
| Contact distance | RM 2.54 | |
| Length | 9.53 mm | |
| Power | 0.25 W | |
| max. number of revolutions | 1 | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -40 °C | |
| Assembly | straight | |
| Track Taper | linear |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85334010 |
| MSL | MSL 1 |
| Original Packaging | Bar with 50 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
