3310Y-001-502L | Bourns Electronics GmbH

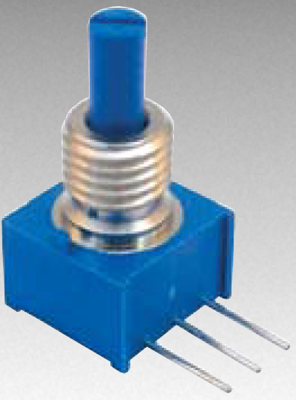

Conductive plastic potentiometer, 5 kΩ, 0.25 W, linear, solder pin, 3310Y-001-502L

Order No.: 06E1178
EAN: 4099879948793
MPN:
3310Y-001-502L
Series: 3310
3310Y-001-502L Bourns Electronics GmbH Potentiometers
Image may differ
Unit Price (€ / pc.)
2.499 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Total Price:
624.75 € *
*incl. VAT plus shipping costs
**Subject to prior sale
250 pcs.
2.499 €

Conductive plastic potentiometer, 3310Y-001-502L, Bourns Electronics GmbH

This conductive plastic potentiometer withstands typical industrial washing processes.

Features

  • PC board and bushing mount
  • Compact package saves board and panel space
  • RoHS compliant
Technical specifications
Ausführung Leitplastik Potentiometer
ohmscher Widerstand 5 kΩ
Leistung 0.25 W
Montage gerade
Widerstandsverlauf linear
Drehbereich (elektrisch) 270 °
Drehbereich (mechanisch) 300 °
max. Anzahl der Umdrehungen 1
Durchmesser der Achse 3.18 mm
Anschluss Lötstift
Kontaktabstand RM 2,54
Länge 9.53 mm
Breite 9.53 mm
min. Temperatur -40 °C
max. Temperatur 125 °C
Logistics
Ursprungsland MX
Zolltarifnummer 85334010
MSL MSL 1
Originalverpackung Stange mit 50 Stück
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
