3540S-1-104L | Bourns Electronics GmbH

Precision potentiometer, 10 turns, 100 kΩ, 2 W, linear, solder lug, 3540S-1-104L

Order No.: 69E1118
EAN: 4099879972415
MPN:
3540S-1-104L
Series: 3540
Bourns Electronics GmbH

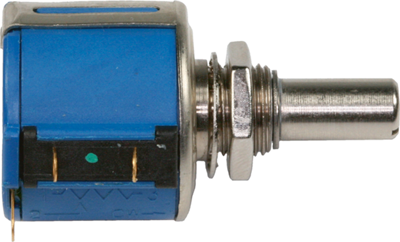

3540S-1-104L Bourns Electronics GmbH Potentiometers Image 1
3540S-1-104L Bourns Electronics GmbH Potentiometers Image 2
Image may differ
Unit Price (€ / pc.)
43.4350 € *
Available: 30 pcs.
Leadtime: 11 Weeks **
Total Price:
43.44 € *
Price list
Quantity
Price per unit*
1 pcs.
43.4350 €
10 pcs.
38.2228 €
20 pcs.
37.1875 €
40 pcs.
36.1403 €
160 pcs.
34.0459 €
*incl. VAT plus shipping costs
**Subject to prior sale

Wire-wound multi-turn potentiometers, type Bourns 354.

With bushing mount, shaft with adjustment slot; Linearity: ±0.25 %. Operating temperatures: +1.0 to +125 °C. Resistance tolerance: ±5.0%. Test voltage: 1000 VAC. Bushing mount: 3/8 inch x 32 UNEF.

10 turns, type 3540S.

Load rating: 2.0 W at +70 °C, 0 W at +125 °C. Operating voltage: max. 447 VAC, TC: ±50. Electrical and mechanical adjustment range: 3600° (+10°/–0°).

Type: 100K

Technical specifications
ohmscher Widerstand 100 kΩ
Anschluss Lötöse
Ausführung Präzisionspotentiometer
Breite 20 mm
Drehbereich (elektrisch) 3600 °
Drehbereich (mechanisch) 3600 °
Durchmesser der Achse 6.34 mm
Länge 22.2 mm
Leistung 2 W
max. Anzahl der Umdrehungen 10
max. Temperatur 125 °C
min. Temperatur 1 °C
Montage gerade
Widerstandsverlauf linear
Logistics
Ursprungsland MX
Zolltarifnummer 85333100
MSL MSL 1
Originalverpackung Stange mit 10 Stück
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
