3543S-1-103L | Bourns Electronics GmbH

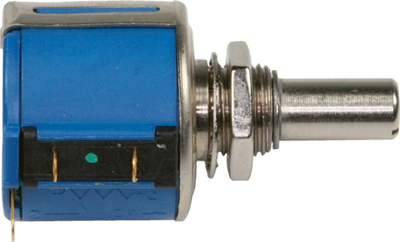

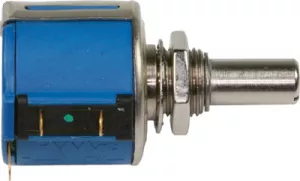

Precision potentiometer, 3 turns, 10 kΩ, 1 W, linear, solder lug, 3543S-1-103L
Unit Price (€ / pc.)
60.2735 € *
Available: 30 pcs.
Leadtime: 11 Weeks **
Total Price:
60.27 € *
Price list
Quantity
Price per unit*
1 pcs.
60.2735 €
10 pcs.
53.0383 €
20 pcs.
51.5984 €
40 pcs.
50.1466 €
160 pcs.
47.2549 €
*incl. VAT plus shipping costs
**Subject to prior sale
Wire-wound multi-turn potentiometers, type Bourns 354.
With bushing mount, shaft with adjustment slot; Linearity: ±0.25 %. Operating temperatures: +1.0 to +125 °C. Resistance tolerance: ±5.0%. Test voltage: 1000 VAC. Bushing mount: 3/8 inch x 32 UNEF.
3-turns, type 3543S.
Load rating: 1.0 W at +70 °C, 0 W at +125 °C. Operating voltage: max. 224 VAC, TC: ±100. Electrical and mechanical adjustment range: 1080° (+10°/–0°).
Type: 10K

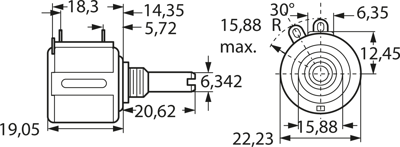

Technical specifications
| ohmscher Widerstand | 10 kΩ | |
| Anschluss | Lötöse | |
| Ausführung | Präzisionspotentiometer | |
| Breite | 20 mm | |
| Drehbereich (elektrisch) | 1080 ° | |
| Drehbereich (mechanisch) | 1080 ° | |
| Durchmesser der Achse | 6.34 mm | |
| Länge | 22.2 mm | |
| Leistung | 1 W | |
| max. Anzahl der Umdrehungen | 3 | |
| max. Temperatur | 125 °C | |
| min. Temperatur | 1 °C | |
| Montage | gerade | |
| Widerstandsverlauf | linear |
Download
Logistics
| Ursprungsland | MX |
| Zolltarifnummer | 85333100 |
| MSL | MSL 1 |
| Originalverpackung | Tray mit 10 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
