3590S-1-203L | Bourns Electronics GmbH

Precision potentiometer, 10 turns, 20 kΩ, 2 W, linear, solder lug, 3590S-1-203L

Order No.: 69E1162
EAN: 4099879972620
MPN:
3590S-1-203L
Series: 3590
Bourns Electronics GmbH

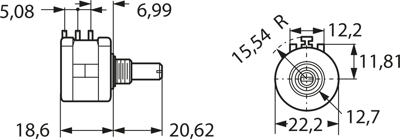

3590S-1-203L Bourns Electronics GmbH Potentiometers Image 1

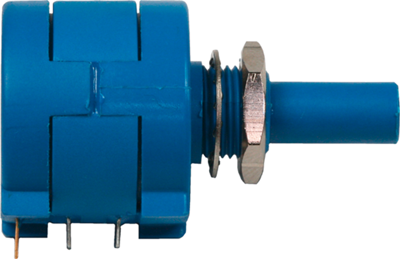

3590S-1-203L Bourns Electronics GmbH Potentiometers Image 2
Image may differ
Unit Price (€ / pc.)
13.4113 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Total Price:
13.41 € *
*incl. VAT plus shipping costs
**Subject to prior sale
100 pcs.
13.4113 €

Wire-wound multi-turn potentiometers, 10 turns, type Bourns 3590S.

With bushing thread; Linearity: ±0.25 %. Load rating: 2.0 W at +40 °C, 0 W at +125 °C. Operating voltage: max. 450 VAC. Operating temperatures: –40 to +125 °C. Temperature coefficient: ±50. Resistance tolerance: ±5.0 %. Test voltage: 1500 VAC. Adjustment range: electrical and mechanical 3600° (+10°/–0°).

With plastic shaft, type 3590S-1.

Mount: 3/8 inch 32 UNEF.

Type: 20K

Technical specifications
ohmic resistance 20 kΩ
Connection solder lug
Version precision potentiometer
Width 18.6 mm
Rotary range, electrical 3600 °
Mechanic rotary range 3600 °
axle diameter 6.3 mm
Length 22 mm
Power 2 W
max. number of revolutions 10
max. operating temperature 125 °C
min. operating temperature 1 °C
Assembly straight
Track Taper linear
Logistics
Country of origin MX
Customs tariff number 85333100
MSL MSL 1
Original Packaging Tray with 10 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
