3590S-2-502L | Bourns Electronics GmbH

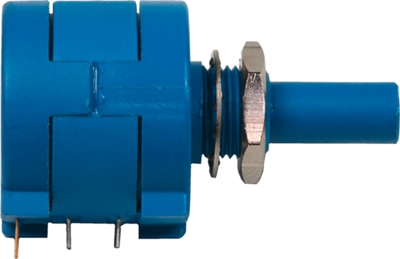

Precision potentiometer, 10 turns, 5 kΩ, 2 W, linear, solder lug, 3590S-2-502L
Unit Price (€ / pc.)
19.0757 € *
Available: 3 pcs.
Next delivery: 100 pcs. on 2025-03-14
Leadtime: 10 Weeks **
Total Price:
19.08 € *
Price list
Quantity
Price per unit*
1 pcs.
19.0757 €
10 pcs.
16.7909 €
50 pcs.
15.6366 €
150 pcs.
14.9464 €
500 pcs.
14.1967 €
*incl. VAT plus shipping costs
**Subject to prior sale
Wire-wound multi-turn potentiometers, 10 turns, type Bourns 3590S.
With bushing thread; Linearity: ±0.25 %. Load rating: 2.0 W at +40 °C, 0 W at +125 °C. Operating voltage: max. 450 VAC. Operating temperatures: –40 to +125 °C. Temperature coefficient: ±50. Resistance tolerance: ±5.0 %. Test voltage: 1500 VAC. Adjustment range: electrical and mechanical 3600° (+10°/–0°).
With metal shaft, type 3590S-2.
Mount: 3/8 inch 32 UNEF.
Type: 5K0

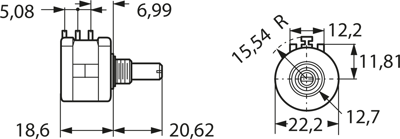

Technical specifications
| ohmscher Widerstand | 5 kΩ | |
| Anschluss | Lötöse | |
| Ausführung | Präzisionspotentiometer | |
| Breite | 18.6 mm | |
| Drehbereich (elektrisch) | 3600 ° | |
| Drehbereich (mechanisch) | 3600 ° | |
| Durchmesser der Achse | 6.34 mm | |
| Länge | 22 mm | |
| Leistung | 2 W | |
| max. Anzahl der Umdrehungen | 10 | |
| max. Temperatur | 125 °C | |
| min. Temperatur | 1 °C | |
| Montage | gerade | |
| Widerstandsverlauf | linear |
Download
Logistics
| Ursprungsland | MX |
| Zolltarifnummer | 85333100 |
| MSL | MSL 1 |
| Originalverpackung | Stange mit 10 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
