3610S-1-103 | Bourns Electronics GmbH

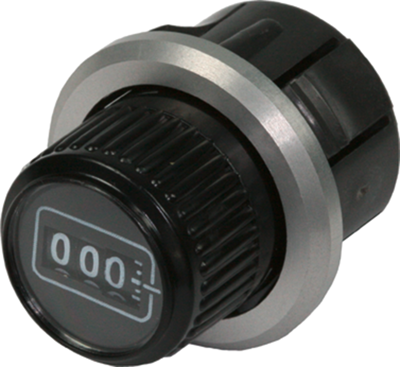

Wire-wound potentiometer, 10 turns, 10 kΩ, 1.5 W, linear, J-hook, 3610S-1-103
Unit Price (€ / pc.)
224.6601 € *
Available: 28 pcs.
Leadtime: 6 Weeks **
Total Price:
224.66 € *
Price list
Quantity
Price per unit*
1 pcs.
224.6601 €
3 pcs.
217.9128 €
10 pcs.
210.4277 €
25 pcs.
204.8109 €
50 pcs.
200.3246 €
*incl. VAT plus shipping costs
**Subject to prior sale
Digital wire-wound multi-turn potentiometers, 10-turn, type Bourns 3610S.
For snap-in mounting; Version: linear. Resolution: 0.1 %. Tolerance: ±0.5 % (full scale). Load rating: 1.5 W at +25 °C (0 W at +85 °C). Operating voltage: max. 385 VAC. Test voltage: 1000 VAC. Resistance tolerance: ±5.0 %. Operating temperatures: +1.0 to +85 °C.
Type: 10K
Technical specifications
| ohmic resistance | 10 kΩ | |
| Connection | J-hook | |
| Version | wire-wound potentiometer | |
| Width | 35.1 mm | |
| Rotary range, electrical | 3600 ° | |
| Mechanic rotary range | 3600 ° | |
| axle diameter | 22.23 mm | |
| Length | 31.5 mm | |
| Power | 1.5 W | |
| max. number of revolutions | 10 | |
| max. operating temperature | 85 °C | |
| min. operating temperature | 1 °C | |
| Assembly | straight | |
| Track Taper | linear |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85333100 |
| MSL | MSL 1 |
| Original Packaging | Bar with 1 piece |
Compliance
| RoHS conform | No |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Cadmium |
